Gearing

41B 42B Early Head Gearing

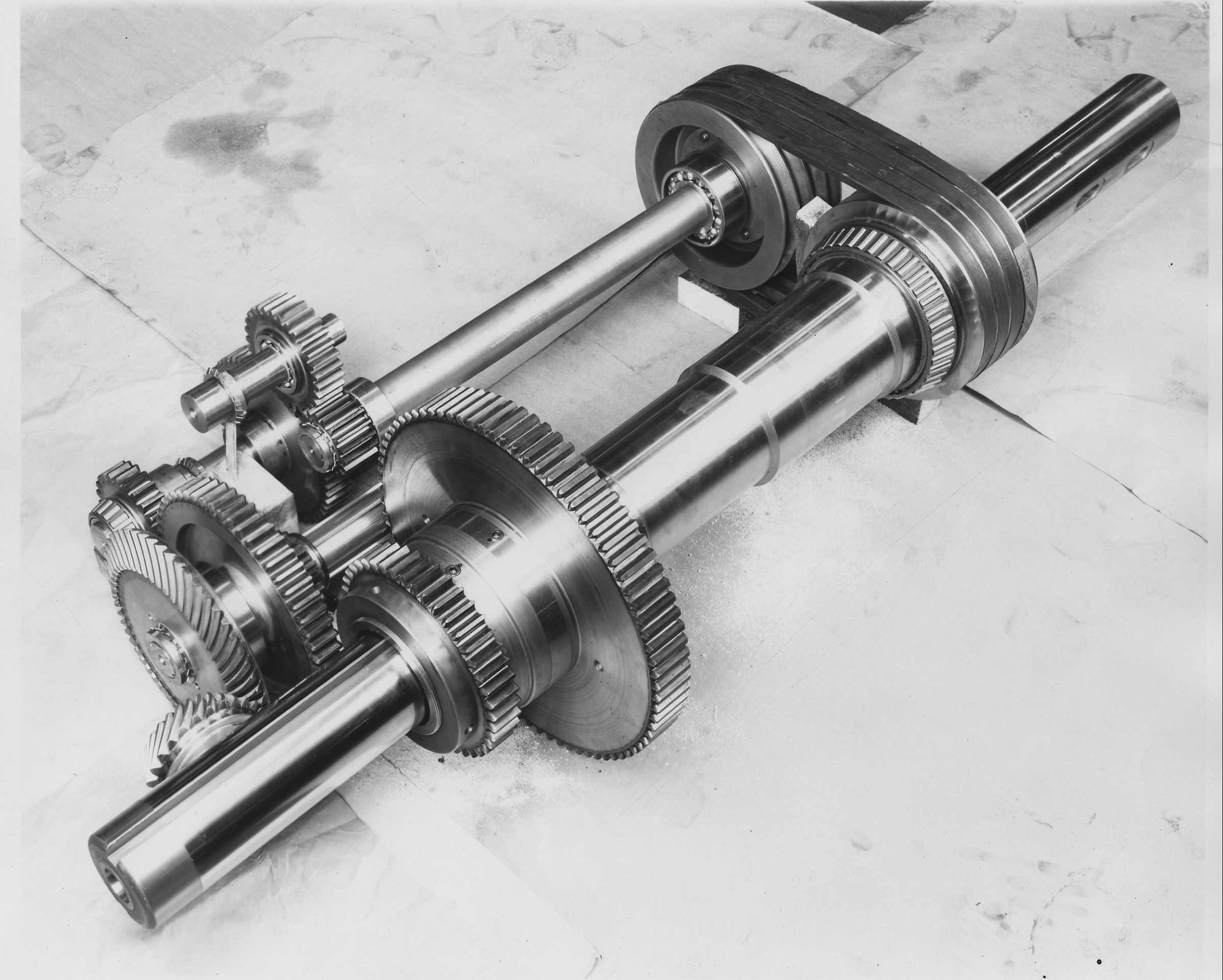

41B or 42B Machine Head Gearing

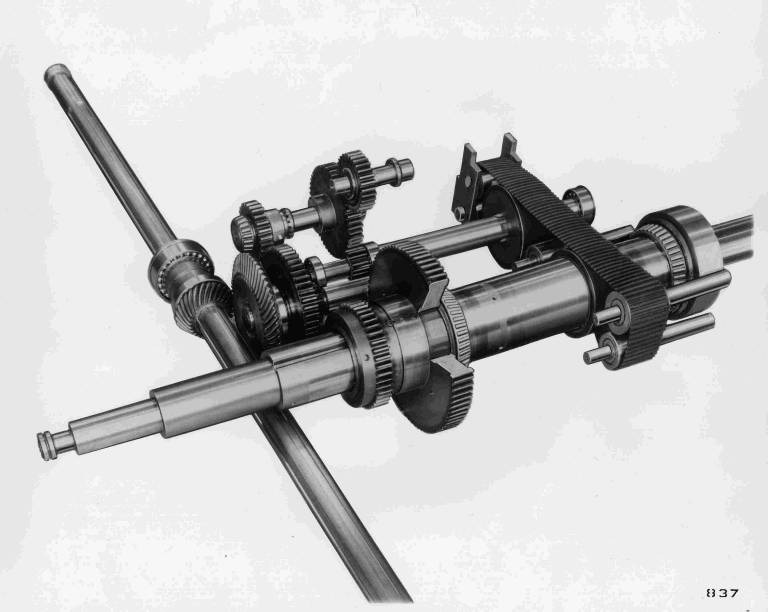

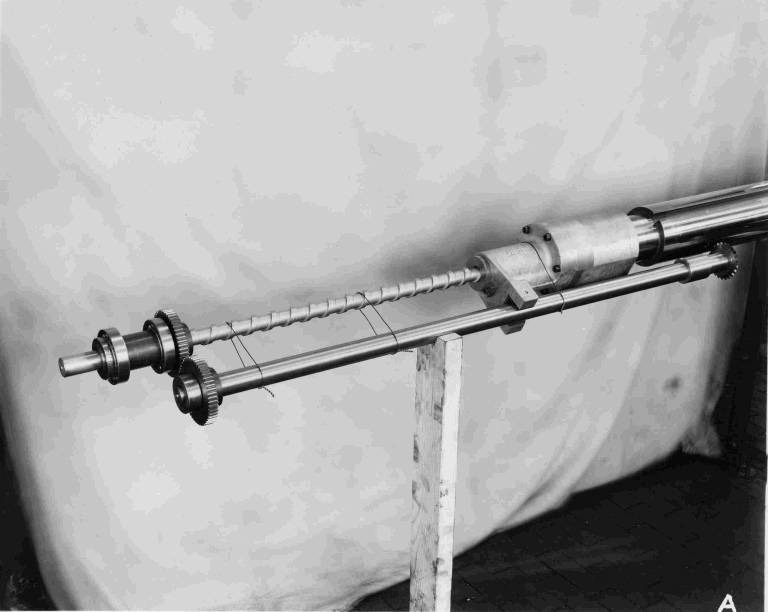

41B or 42B Machine Spindle Feed Mechanism

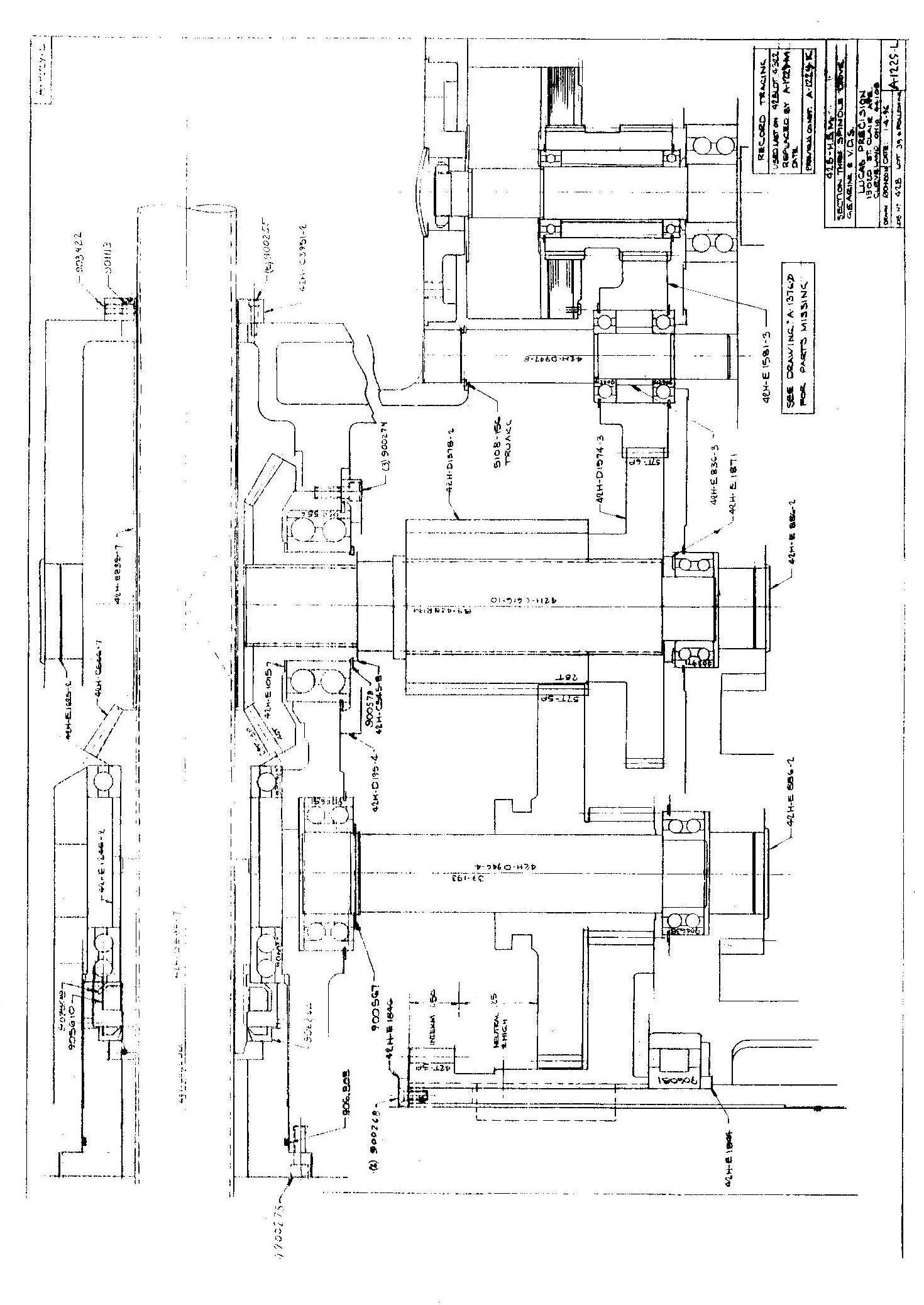

A-1229-L 42B Section thru Spindle Drive Gears & VDS

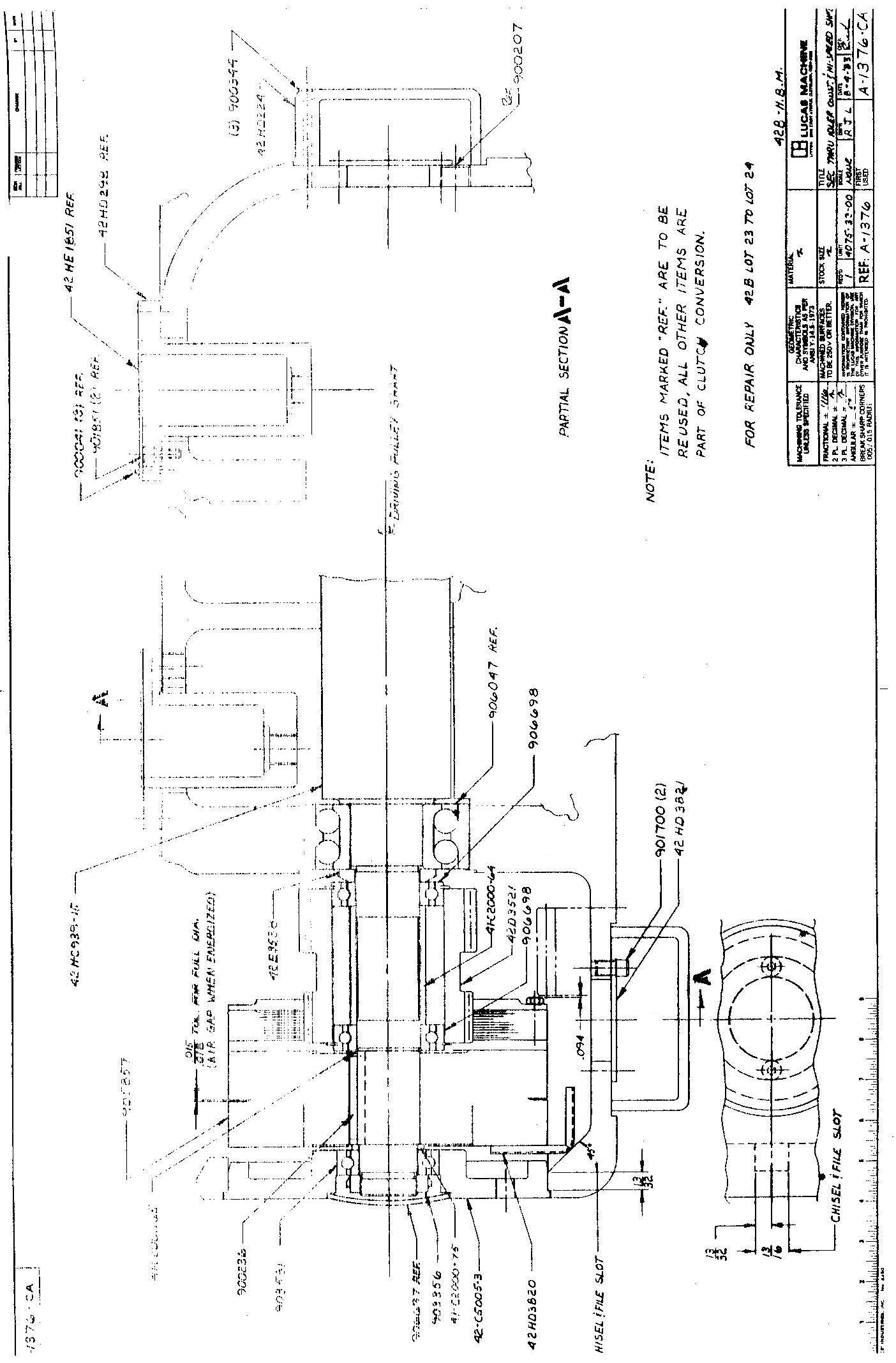

A-1376-CA 42B Section thru Idler Gear & Hi-Speed Shaft

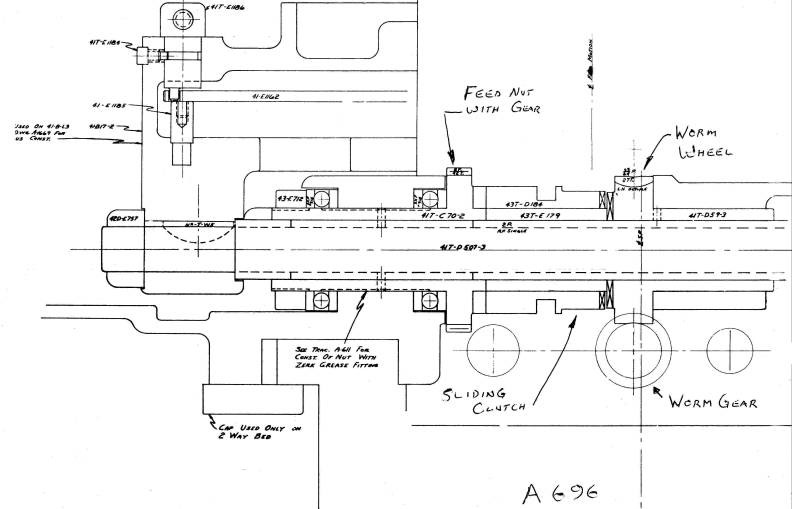

Early 41B or 42B Table Drive Cross Section A-696

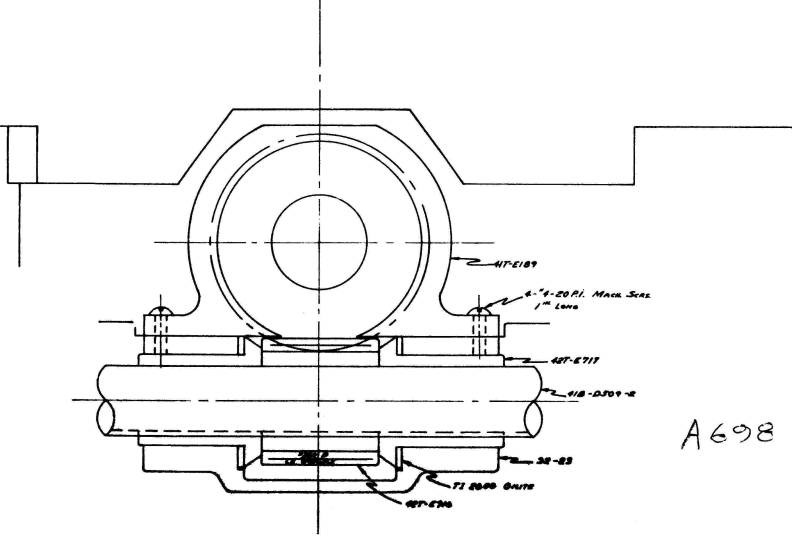

Early 41B or 42B Table Feed Worm & Wheel A-698

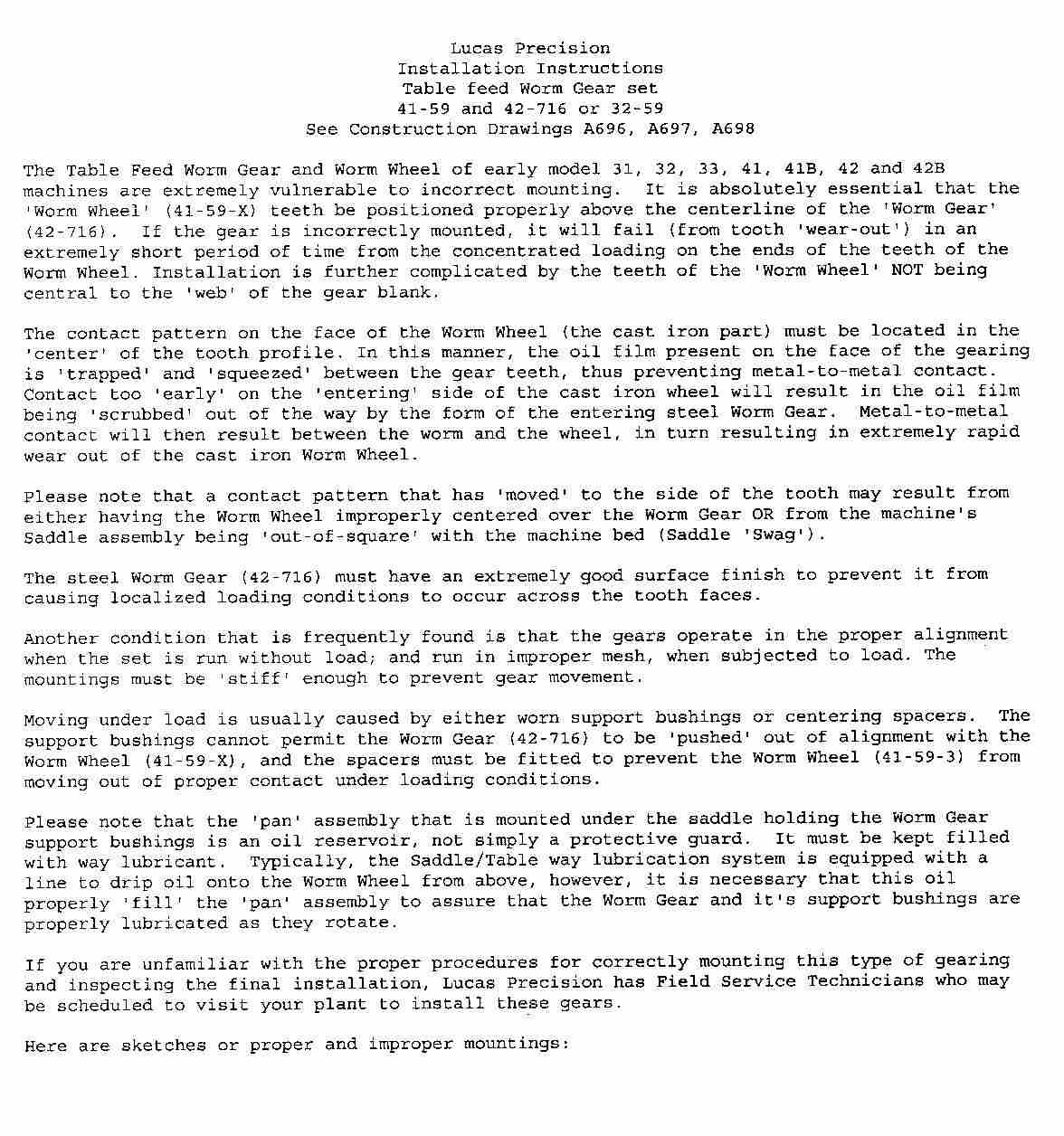

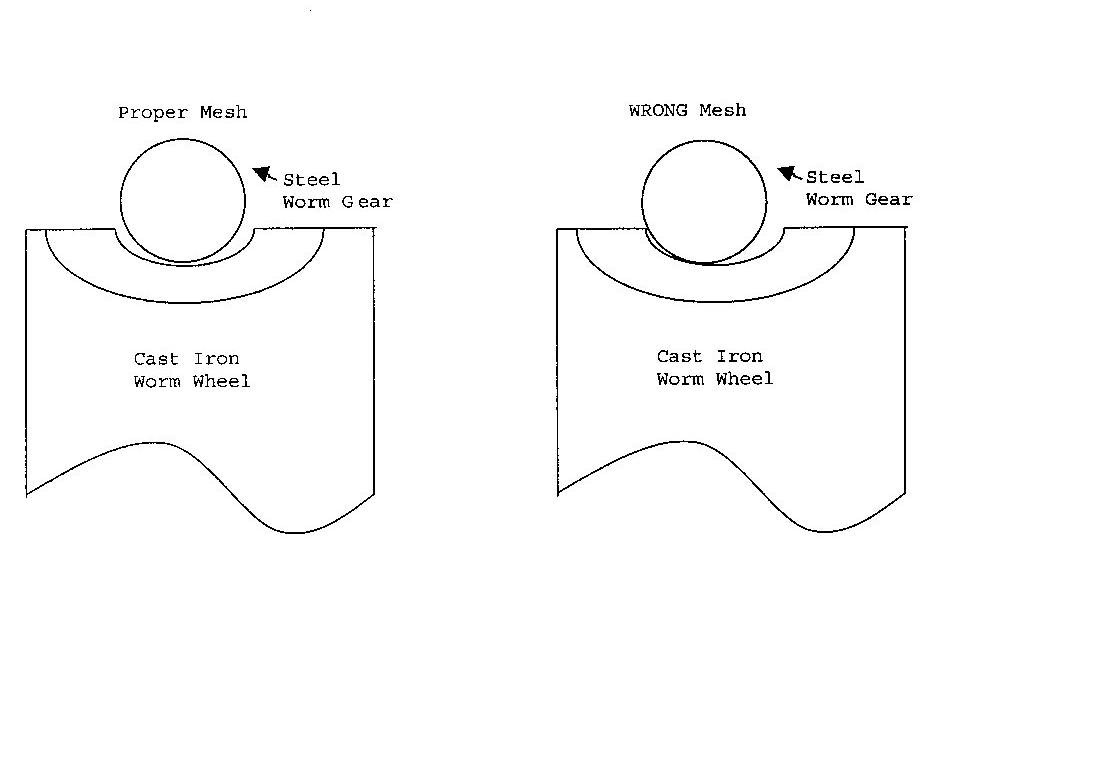

Gear Install Tips
