'Flat-Sided' O-Ring Problems

I get several calls each year with problem descriptions something like this:

My PTE won't eject a tool for the first several hours of each day (or after a weekend shutdown); however, it suddenly begins working OK, and then its fine for the rest of the day.

or

I can't seem to change Speeds (or Feeds) for the first several hours of each day (or after a weekend shutdown); however, it suddenly begins working OK, and then its fine for the rest of the day.

Read More »

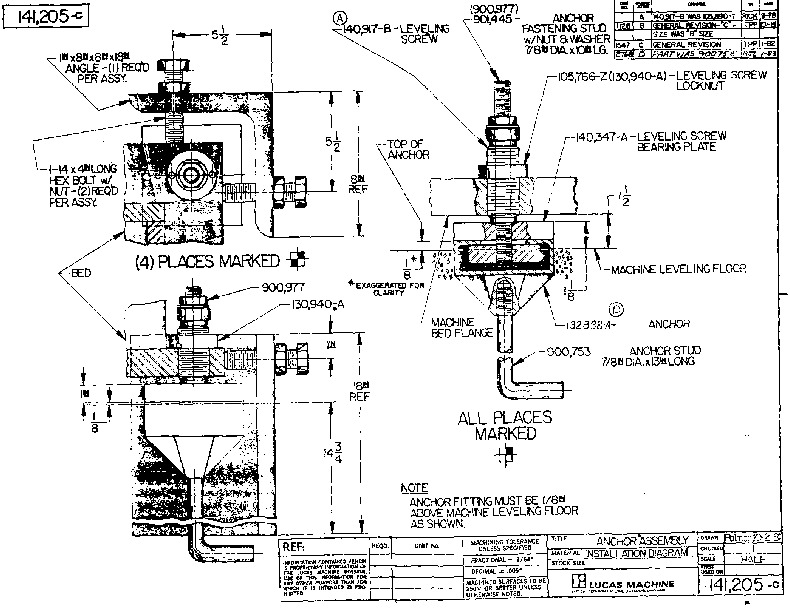

141205 Foundation Hardware for Newer Machines

141205 Foundation Hardware for Newer Machines PDF





1920 Foreman's Reminders

"Lest We Forget"

NEW EMPLOYEES:

Read More »

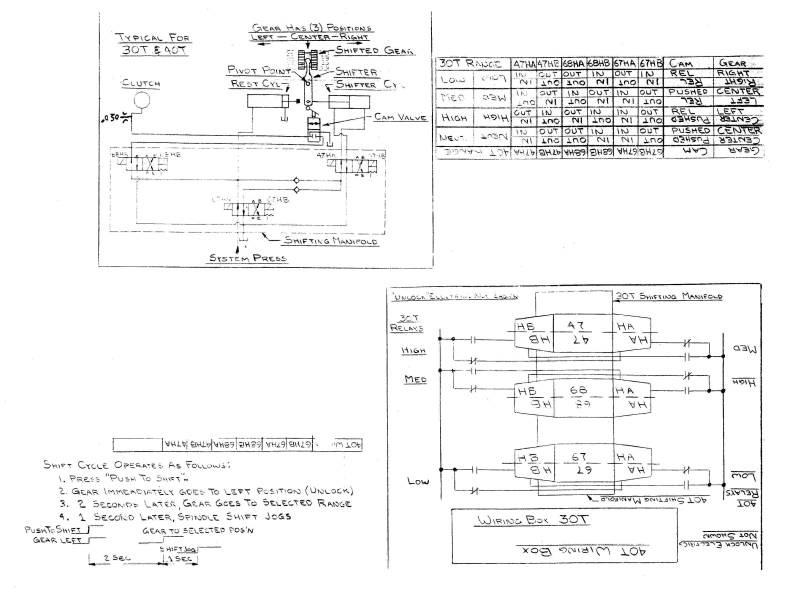

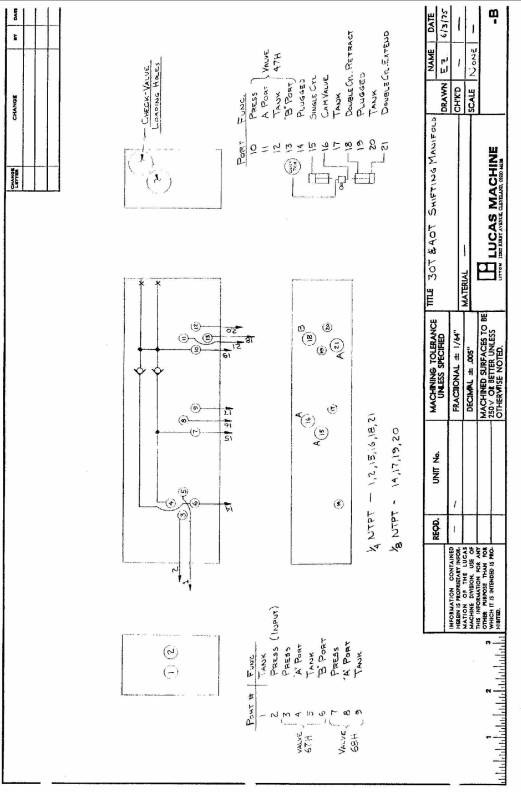

30T 40T Shifting Manifold Internal Porting



30T 40T Simplified Shifting


41B & 42B Oil Additives

For machine Serial Numbers from 41B2910 thru 41B3009 and Serial Numbers 42B3606 thru 42B3708

These machines originally have Mobil DTE24 oil or its equivalent in the Speed Gear Box and the Feed Distributing Bracket.

The oil in the Speed Gear Box should be changed to Mobil DTE Light or its equivalent. The Feed Distributing Bracket oil should be changed to Mobil Heavy-Medium or its equivalent.

Read More »

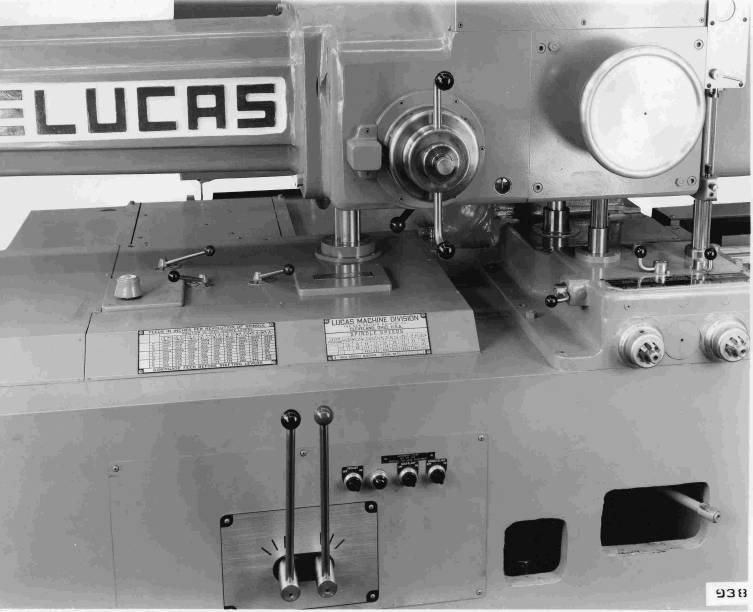

41B or 42B Machine Shift Levers

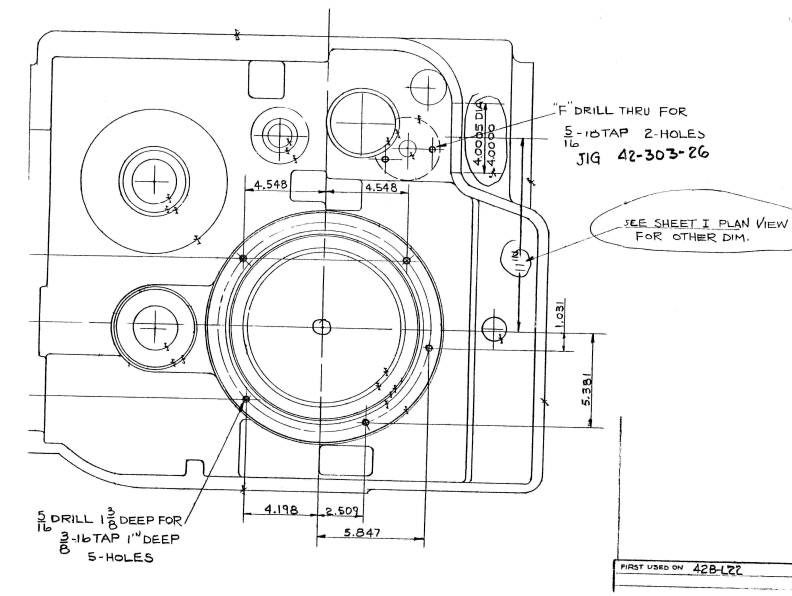

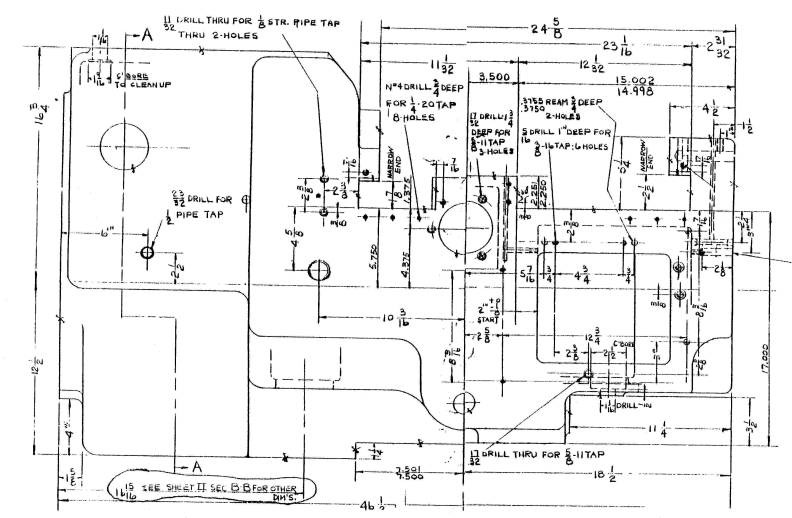

42B Lot 20 thru 22 Access Hole Locations







42B Lot 20 thru Lot 22 Head Assembly Tips

Spindle Sleeve Installation and Head Service Notes

Spindle Sleeve Installation Tip 1:

The installation of the Spindle Sleeve into the headstock of this range of serial numbers is complicated by the use of (2) 'light-duty' Timken tapered roller bearings to provide support to the rear end of the spindle sleeve.

Read More »



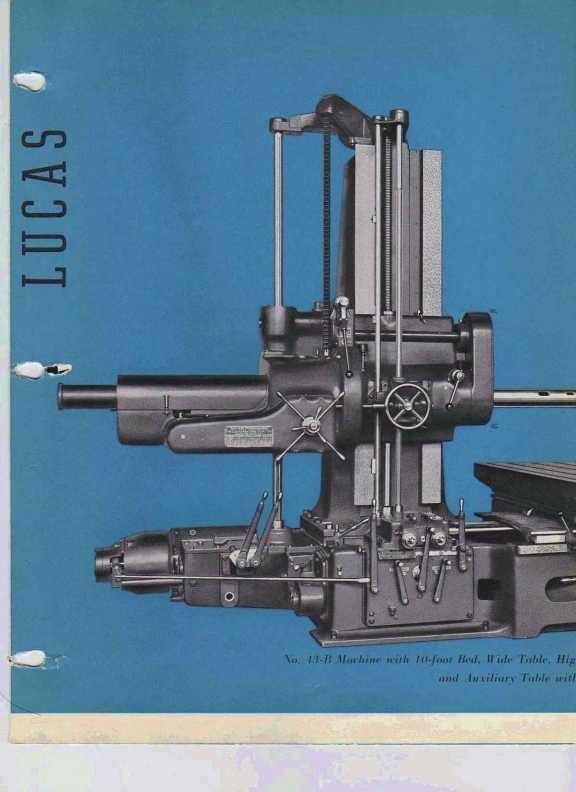

43B left

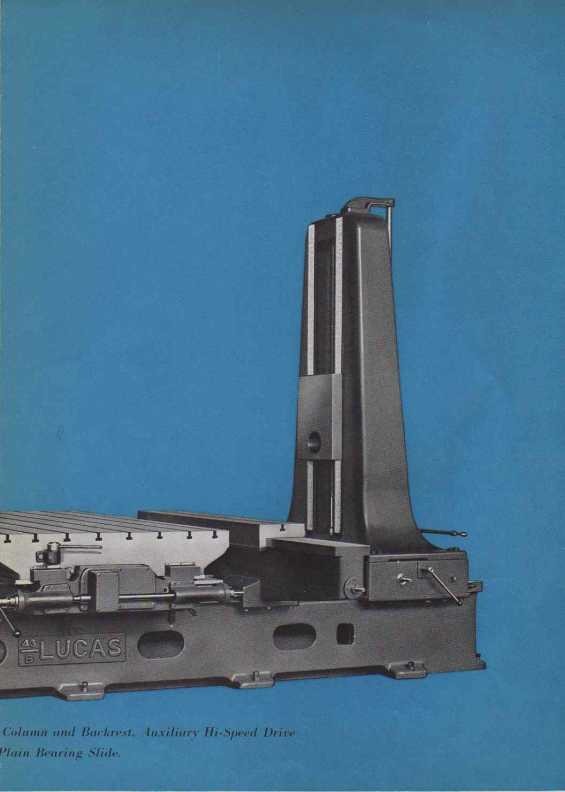

43B right



A Short Biography of Henry M Lucas

Founder of The Lucas Machine Company

Read More »

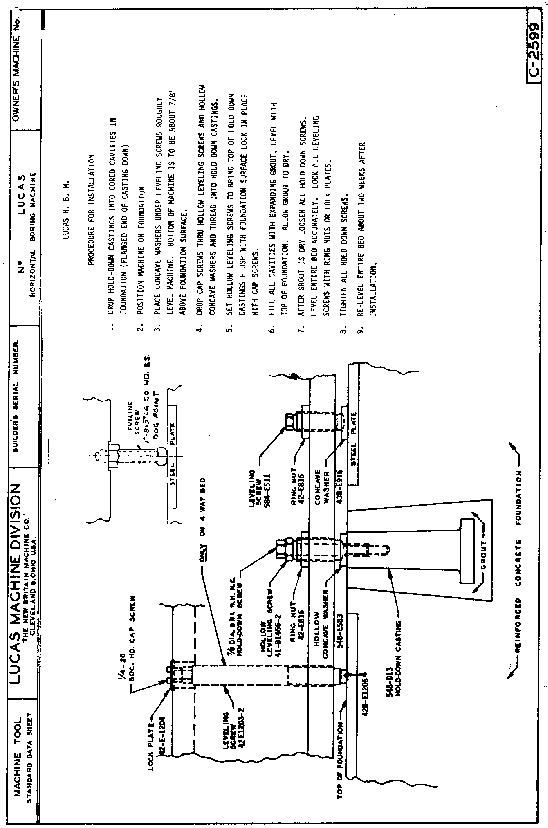

C2599 Foundation Hardware for Older Machines





Construction And Use Of A Cylindrical Square

To Fabricate a Cylinder Square:

Read More »



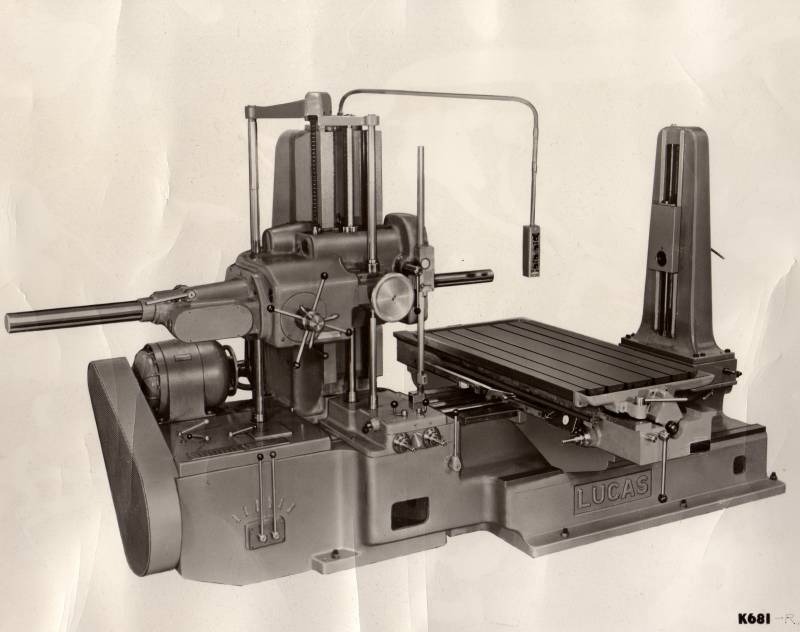

Early 'B' Series Machine showing Hand-Operated Feed-Rapid Clutch Lever



KeeperKey



Model 31 Feed Distributing Gears B1366A

Model 31 Feed Distributing Gears B1366A PDF



Model 31 Feed Drive & Rapid B1832A





Model 31 Spindle Drive B1365



Model 32 Feed Distributing Gears B1543



Model 32 Feed Distributing Mechanism B1543





Model 32 Feed Drive & Rapid B1832A





Model 32 Head & Backrest Feed Screws B1542A



Model 32 Spindle Drive B1541



Model 32 Spindle Driving Mechanism B1541A



Model 33 Feed & Quick Power Mechanism B1832A



Model 33 Feed Distributing Mechanism B1543



Model 33 Head & Backrest Feed Screws B1542A



Model 33 Spindle Driving Mechanism B1392



Model 33 Spindle Driving Mechanism B1541A

Model 43B & Model 53 Specs



Modified Morse Keeper Key



Oils used with Magnetic Clutches

Rewrite of Customer Service Bulletin No 568, originally dated 1-13-1966


Applies to:          41B2910 thru 41B3009
                             42B3606 thru 42B3708
                             and others with Magnetic Feed & Rapid Traverse Clutches



Lubrication Revision:

The subject machines have Mobil DTE-24 oil or its equivalent in the Speed Gearbox and Feed Distributing Bracket.

Read More »



The History of the Lucas Machine Company

Manufacturers of the World Famous
Lucas Horizontal Boring, Milling and Drilling Machine



On January 1, 1900 at the age of 30, Henry M. Lucas organized the Lucas Machine Tool Company with George C. Lucas and Frank Yost as his partners and they soon began production of the world famous Lucas Boring Mill at the original factory on East 99th Street in Cleveland, Ohio. Their first machine (Model #1) was shipped in 1901 and ran to a production of 351 machines.

Read More »



Typical Machine Foundations & Hardware

Most Lucas boring mills build after 1950 were designed to be installed on a foundation to provide mechanical support for the machine.As impressive as the main bed castings are on a typical Lucas, they are NOT a 'self-supporting' structural element.If a machine is supported only at the four corners, it is astonishing how much the castings will visibly bend from their own weight.

Read More »


Used Machine Extraction Check-off List

This reminder list should be used when moving a Lucas Machine from one site to another.It is particularly valuable in assisting a new owner to secure all of the 'parts' of a machine he has just purchased. The list may not be totally complete for any given machine (since so many models and variations of Lucas Machines exist), and is primarily intended to provide a 'starting point'.

NOTE: If the original owner has (or had) more than one Lucas Machine, check for the correct serial number on ALL of the items listed.

Read More »



Using Gaskets on Lucas Boring Mills

There is much confusion regarding the use of cork & rubber gaskets and liquid gasketing compounds (IE Permatex) on Lucas boring mills.Here are the 'rules'.

If the 'cover' you are going to gasket has NO mechanism that is part of it - go head and apply gasketing material as you see fit.

Read More »
